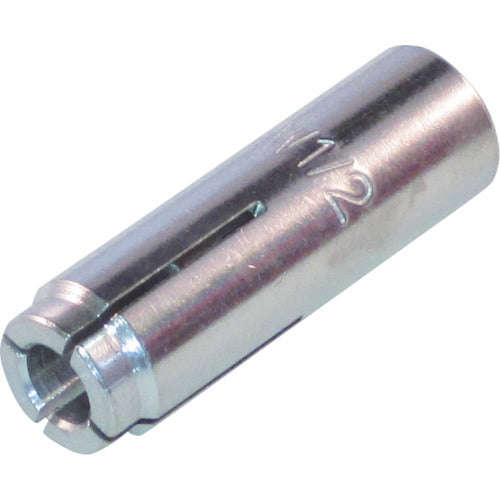

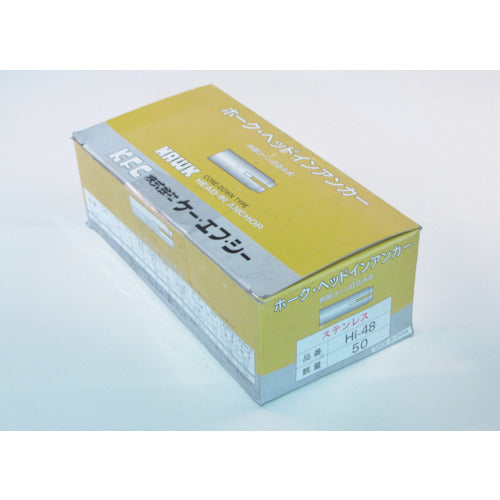

K.F.C. Hawk Head-in Anchor HI Type Stainless Steel SUS HI-48 50 Pieces

Catalog number: SUS HI-48 Features: ●A compactly designed "tapped type" anchor with a built-in cone. ●When casting, the protrusion of the dedicated driving rod is completely inserted into the body, which serves as a guide for casting completion, making construction management easy. Applications: ●For concrete. ●For installation in architecture, light ceilings, civil engineering, electrical engineering, air conditioning, machinery, signs, etc. Specifications: ●Screw size: W1/2 ●Outer diameter (mm): 16.0 ●Total length (mm): 50 ●Screw length (mm): 18 ●Drill diameter (mm): 16.5 ●Maximum tensile load (kN): 22.0 ●Boxed Material/Finish: ●Stainless steel (equivalent to SUS304) Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/m［［Ｍ２］］.
