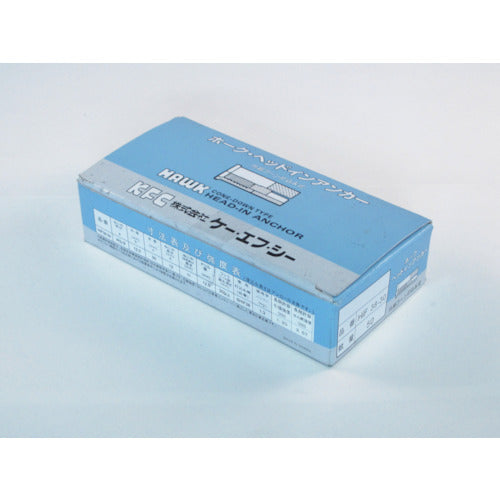

K.F.C. Hawk Head-in Anchor HIF Type Steel HIF38-30 50 Pieces

Catalog number: HIF38-30 Features: ●If the concrete part of the structure is thicker than the total length of the anchor, this anchor can be installed even if the inside of the concrete structure is hollow. Applications: ●For concrete. ●For installation in architecture, light ceilings, civil engineering, electrical, air conditioning, machinery, signs, etc. Specifications: ●Screw size: W3/8 ●Outer diameter (mm): 12.0 ●Total length (mm): 30 ●Screw length (mm): 12 ●Drill diameter (mm): 12.5 ●Maximum tensile load (kN): 13.0 ●Maximum shear load (kN): 23.7 ●Pilot hole diameter (mm): 12.5 ●Boxed Material/Finish: ●Steel ●Electrogalvanized Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/m［［Ｍ２］］.
