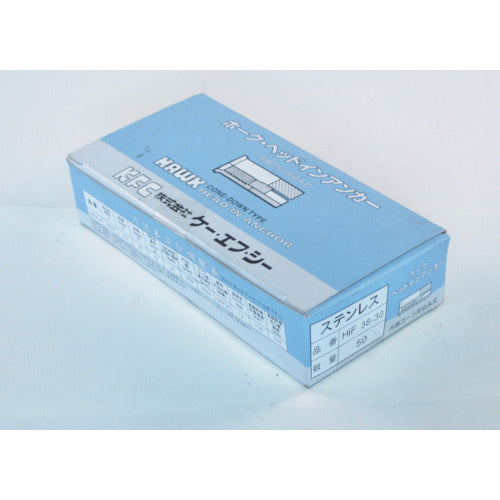

K.F.C. Hawk Head-in Anchor HIF Type Stainless Steel SUS HIF38-30 50 Pieces

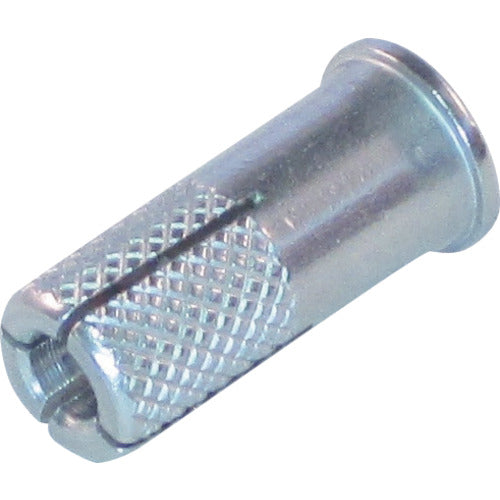

Catalog number: SUS HIF38-30 Features: ●If the concrete portion of the structure is thicker than the total length of the anchor, this anchor can be installed even if the inside of the concrete structure is hollow. Applications: ●For concrete. ●For installation in architecture, light ceilings, civil engineering, electrical, air conditioning, machinery, signs, etc. Specifications: ●Screw size: W3/8 ●Outer diameter (mm): 12.0 ●Total length (mm): 30 ●Screw length (mm): 12 ●Drill diameter (mm): 12.5 ●Maximum tensile load (kN): 13.0 ●Boxed Material/Finish: ●Stainless steel (equivalent to SUS304) Note: ●The maximum tensile load is the value when the concrete strength is Fc18N/m［［Ｍ２］］.
