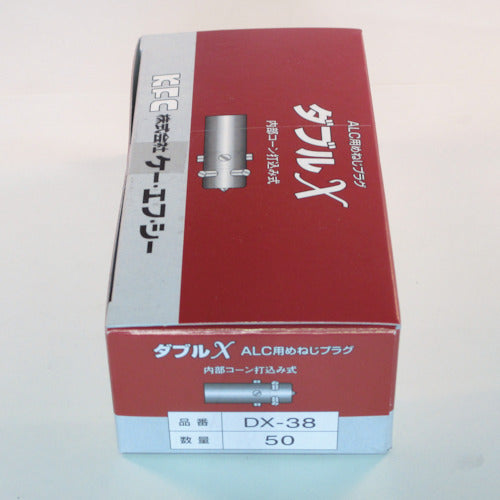

K.F.C. ALC Plug Anchor Double X Female Thread Type Inch Thread DX-38 50 Pieces

Catalog number: DX-38 Features: ● Eight protruding claws are fixed in place. ● The material is nylon 66 reinforced with 15% glass fiber, and has excellent mechanical properties. Applications: ● For ALC boards. Specifications: ● Screw size: W3/8 ● Outside diameter (mm): 16 ● Total length (mm): 50 ● Drilling depth (mm): 50 ● Embedded depth (mm): 50 ● Drill diameter (mm): 15.0 ● Maximum tensile load (kN): 2 ● Boxed Material/Finish: ● Nylon 66 ● 15% glass fiber reinforced product Note: ● Maximum tensile load is based on the compressive strength of an ALC panel 100 mm thick, Fc3N/m [M2].
