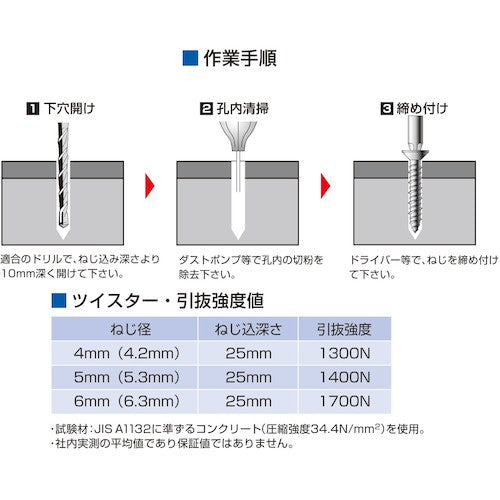

Catalog number: FC-6060P Features: ●Ideal for fastening various components to concrete substrates, and for attaching lightweight items such as pipe saddles. ●Uses Ruspart treatment for excellent retention and high corrosion resistance without the need for plugs. Applications: ●For attaching pipe saddles, guide plates, etc. to concrete substrates. Specifications: Nominal diameter d (mm): 6.3 Pilot hole diameter (mm): 5.3-5.5 Embedding depth (mm): 40 recommended Maximum tensile load (kN): 1.7 Drilling depth (mm): Embedding depth + 10 Length (mm): 60 Compatible driver: No. 3 TL (mm): 54 SL (mm): 6 Screw pitch (mm): 1.8 (14 threads) D (head diameter) (mm): 12 t (head height) (mm): 4 Concrete screw plugless anchor Flat head Sharp point High and low thread Material/Finish: Iron (equivalent to SWCH18A) Surface treatment: Ruspart Note: The embedding depth varies depending on the thickness and weight of the attachment, the strength of the concrete, etc., so please use according to the purpose. Pull-out strength test is performed by embedding the screw 25 mm into the test material: concrete compressive strength 34.4 N/mm (squared) conforming to JIS A1132. *The above pull-out strength values are average values of in-house measurements and are not guaranteed values. *Caution: Please note that larger pilot holes will reduce the pull-out strength. *Caution: Please wear safety goggles and a helmet as cutting chips will fly during work.
