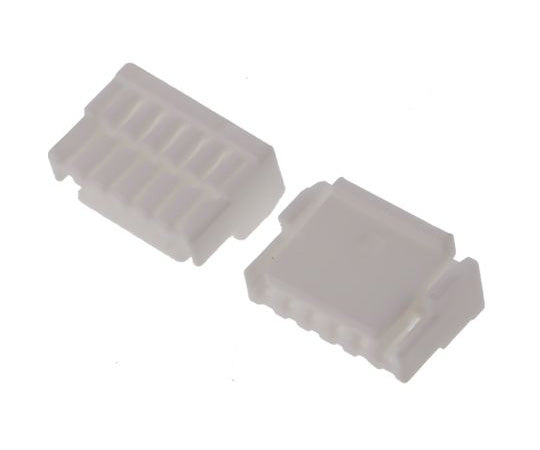

Connector housing 6 poles 1 row 1.25mm GH series 1 bag (10 pieces) GHR-06V-S 1 bag (10 pieces)

GH Series Wire-to-Board Housing JST's GH series is a connector range developed for low insertion force, suitable for PDP, LCD or small electronic devices. The design incorporates a safety locking mechanism on the connector parts including the contacts. Features and Benefits: 1.25mm pitch Secure locking of housing and contacts Easy mating with low insertion Prevents contact deformation during crimping Low insertion force and clear clicking sound Quantity: 1 bag (10 pieces) Number of contacts: 6 Number of rows: 1 Pitch: 1.25mm Mounting Type: Cable Mount Series: GH Compatible products: Board-in connectors, crimp connectors Body orientation: Right angle, straight Length: 8.75mm Width: 4.15mm Depth: 5.7mm Housing material: PBT RoHS Compliance Status: Compliant Code number: 752-1743
