Konoe Stainless Steel Hexagonal Socket Bolt M10 x 20 (100 pieces) CS-SUS-1020 1 box

Konoe Stainless Steel Hexagonal Socket Bolt M10 x 20 (100 pieces) CS-SUS-1020 1 box

JAN：4997265900953 　
Hardware and building materials Hexagonal Socket Head Bolt Hexagonal socket head bolt (cap screw) Konoe Bolt Screws, bolts and nuts
¥7,246
¥7,246
Sale Sold out
Shipping calculated at checkout.

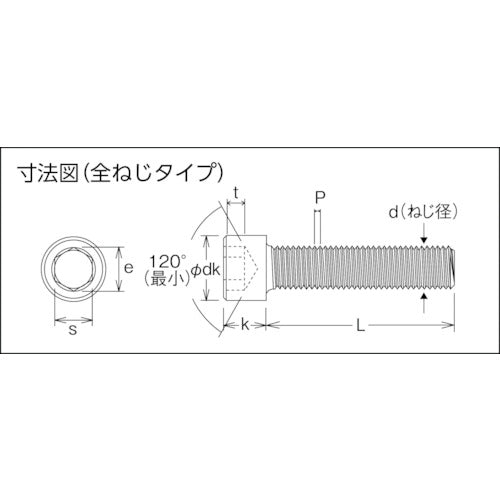

Catalog number: CS-SUS-1020 Features: ● Uses corrosion-resistant stainless steel (equivalent to SUS304). Specifications: ● Dimensions (mm) d: M10 ● Dimensions (mm) L: 20 ● Thread pitch (mm): 1.5 ● Thread length (mm): 20 ● Strength classification: Equivalent to A2-70 ● Head diameter (mm): 16 ● Head thickness (mm): 10 ● Hexagonal hole diagonal dimension (mm): 8 ● Neck length (mm): 20 ● Hexagonal hole depth (mm): 5 ● Thread diameter (mm): 10 ● JIS B1176 standard product Material/Finish: ● Stainless steel (equivalent to SUS304)
