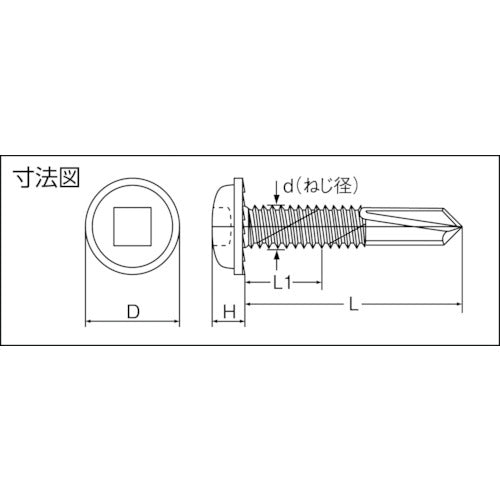

Catalog number: APW5070L Features: ●Can be used on thick steel plates (9 mm or less) such as H-beams without drilling holes. ●Serrations are used on the back of the head to prevent the head from flying off. ●No. 3 is used to prevent damage to the square bit. Applications: ●Attachment to steel plates, H-beams, angles, C-channels, etc. (no burning of the above materials). ●Applicable plate thickness: 2.3mm to 9.0mm Specifications: ●Dimension (mm) d: 5.0 ●Dimension (mm) L: 70 ●Maximum compatible plate thickness (mm): 9.0 ●Head diameter (mm): 10.8 ●Head thickness (mm): 4 ●Dimension (mm) H: 4 ●Dimension (mm) L1: 56 ●Nominal dimension (mm) H: 4 ●Dimension (mm) D: 10.8 ●Thread diameter (mm): 4.8 ●Working length (mm): 56 ●Head shape: Pan seat Material/Finish: ●Low carbon steel (SWCH22A) ●Surface treatment: Trivalent chromate Set contents/Accessories: ●No. 3 square bit x 1
