Konoe Unichrome Hexagonal Socket Bolt M5 x 10 (400 pieces) CS-SS-0510 1 box

Konoe Unichrome Hexagonal Socket Bolt M5 x 10 (400 pieces) CS-SS-0510 1 box

JAN：4997265900588 　
Hardware and building materials Hexagonal Socket Head Bolt Hexagonal socket head bolt (cap screw) Konoe Bolt Screws, bolts and nuts
¥3,524
¥3,524
Sale Sold out
Shipping calculated at checkout.

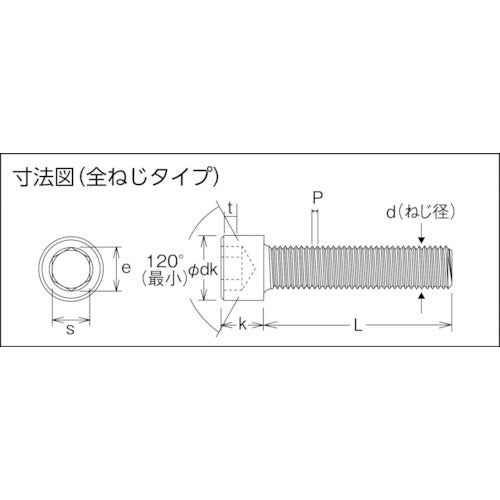

Catalog number: CS-SS-0510 Features: ● Made of SCM material, it has high strength. Specifications: ● Dimensions (mm) d: M5 ● Dimensions (mm) L: 10 ● Thread pitch (mm): 0.8 ● Thread length (mm): 10 ● Strength classification: 10.9 ● Surface treatment: Black dyeing (iron oxide coating) ● Thread type: Full thread ● Head diameter (mm): 8.5 ● Head thickness (mm): 5 ● Hexagonal hole diagonal dimension (mm): 4 ● Hexagonal hole depth (mm): 2.5 ● Thread diameter (mm): 5 ● Neck length (mm): 10 ● JIS B1176 standard product Material/Finish: ● Chromium molybdenum steel (SCM435) ● Surface treatment: Unichrome plating finish
