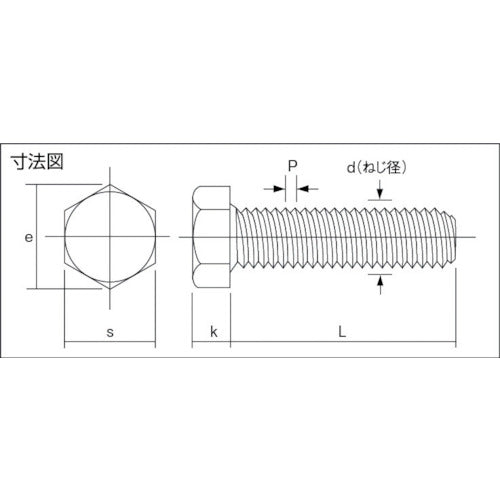

Catalogue number: BT-SS-1225 Features: ●A general hexagonal bolt that is widely used. ●Generally, when we say bolt, we are referring to a hexagonal bolt. Applications: ●Normally not used alone, but in combination with a hexagonal nut to clamp the material from both sides Specifications: ●Dimensions (mm) d: M12 ●Dimensions (mm) L: 25 ●Thread pitch (mm): 1.75 ●Thread length (mm): 25 ●Strength category: 4.8 ●Surface treatment: Unichrome ●Thread type: Full thread ●Two-sided width dimension (mm): 19 ●Hexagonal height (mm): 8 ●Thread diameter (mm): 12 ●Neck length (mm): 25 ●Diagonal dimension (mm): 21.9 Material/Finish: ●Carbon steel wire rod for cold heading (SWCH) ●Surface treatment: Unichrome plating finish
