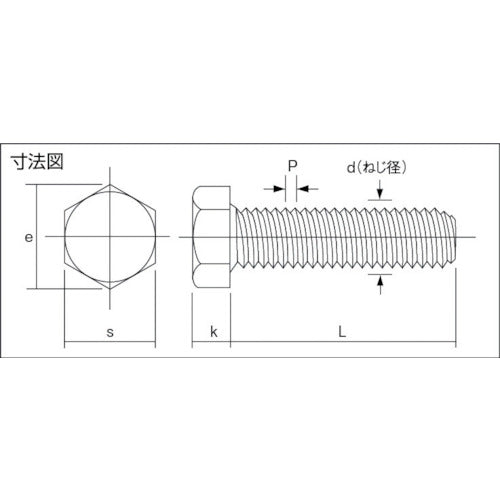

Catalogue number: BT-SS-0650 Features: ●A general hexagonal bolt that is widely used. ●Generally, when we say bolt, we are referring to a hexagonal bolt. Applications: ●Normally not used alone, but in combination with a hexagonal nut to clamp the material from both sides Specifications: ●Dimensions (mm) d: M6 ●Dimensions (mm) L: 50 ●Thread pitch (mm): 1.00 ●Thread length (mm): 50 ●Strength category: 4.8 ●Surface treatment: Unichrome ●Thread type: Full thread ●Two-sided width dimension (mm): 10 ●Hexagonal height (mm): 4 ●Neck length (mm): 50 ●Diagonal dimension (mm): 11.5 ●Thread diameter (mm): 6 Material/Finish: ●Carbon steel wire for cold heading (SWCH) ●Surface treatment: Unichrome plating finish
