Konoe Hexagonal Bolt Steel Unichrome Full Thread M6 x 8 (500 Pieces) BT-SS-0608 1 Box

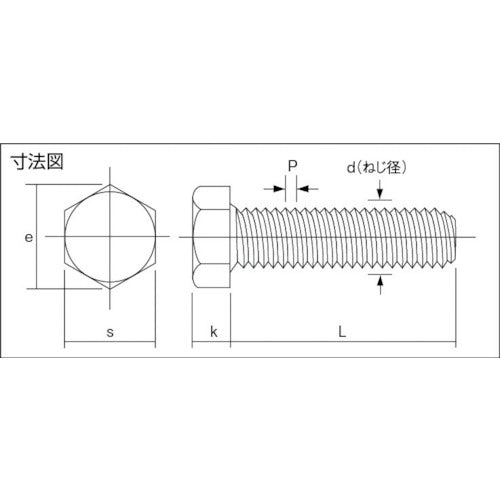

Catalogue number: BT-SS-0608 Features: ● Widely used as a general hex bolt. ● Generally speaking, bolts refer to hex bolts. Applications: ● Not normally used alone, but in combination with a hex nut to clamp parts from both sides Specifications: ● Dimensions (mm) d: M6 ● Dimensions (mm) L: 8 ● Thread pitch (mm): 1.00 ● Thread length (mm): 8 ● Strength category: 4.8 ● Surface treatment: Unichrome ● Thread type: Full thread ● Two-sided width dimension (mm): 10 ● Hexagonal height (mm): 4 ● Thread diameter (mm): 6 ● Neck length (mm): 8 ● Diagonal dimension (mm): 11.5 Material/Finish: ● Carbon steel wire for cold heading (SWCH) ● Surface treatment: Unichrome plating finish
