Konoe Hexagonal Bolt Stainless Steel Full Thread M12x30 (100 Pieces) BT-SUS-1230 1 Box

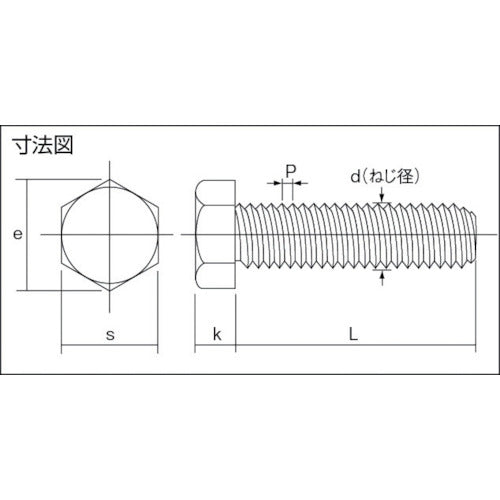

Catalog number: BT-SUS-1230 Features: ● Made of corrosion-resistant stainless steel (SUS304). ● Generally speaking, bolts refer to hexagonal bolts. Applications: ● Not normally used alone, but in combination with a hexagonal nut to clamp parts from both sides. Specifications: ● Dimensions (mm) d: M12 ● Dimensions (mm) L: 30 ● Thread pitch (mm): 1.75 ● Thread length (mm): 30 ● Strength classification: Equivalent to A2-50 ● Thread type: Full thread ● Two-sided width dimension (mm): 19 ● Hexagonal height (mm): 8 ● Neck length (mm): 30 ● Diagonal dimension (mm): 21.9 ● Thread diameter (mm): 12 Material/Finish: ● Stainless steel (equivalent to SUS304)
