Konoe Hexagonal Socket Head Bolt Trivalent White M10 x 20 (100 pieces) CS-W-1020 1 box

Konoe Hexagonal Socket Head Bolt Trivalent White M10 x 20 (100 pieces) CS-W-1020 1 box

JAN：4997265901714 　
Hardware and building materials Hexagonal Socket Head Bolt Hexagonal socket head bolt (cap screw) Konoe Bolt Screws, bolts and nuts
¥3,788
¥3,788
Sale Sold out
Shipping calculated at checkout.

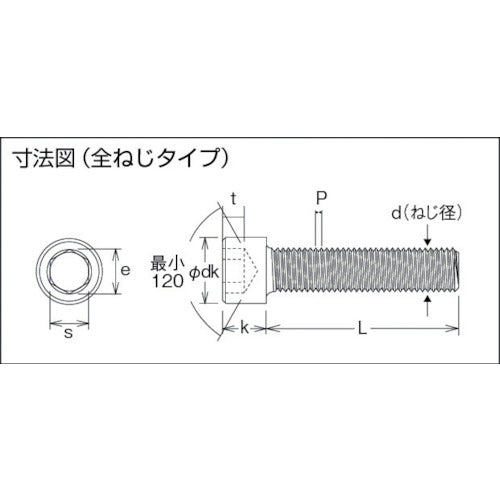

Catalog number: CS-W-1020 Features: ●Trivalent chromate product with low environmental impact. Specifications: ●Dimensions (mm) d: M10 ●Dimensions (mm) L: 20 ●Thread pitch (mm): 1.5 ●Thread length (mm): 20 ●Strength category: 10.9 ●Head diameter (mm): 16 ●Head thickness (mm): 10 ●Hexagonal hole diagonal dimension (mm): 8 ●Thread diameter (mm): 10 ●Neck length (mm): 20 ●Hexagonal hole depth (mm): 5 ●JIS B1176 standard product Material/Finish: ●Chrome molybdenum steel (SCM435) ●Surface treatment: Trivalent chromate finish (white)
