Konoe Hexagonal Socket Head Bolt Trivalent White M3 x 20 (500 pieces) CS-W-0320 1 box

Konoe Hexagonal Socket Head Bolt Trivalent White M3 x 20 (500 pieces) CS-W-0320 1 box

JAN：4997265901547 　
Hardware and building materials Hexagonal Socket Head Bolt Hexagonal socket head bolt (cap screw) Konoe Bolt Screws, bolts and nuts
¥3,089
¥3,089
Sale Sold out
Shipping calculated at checkout.

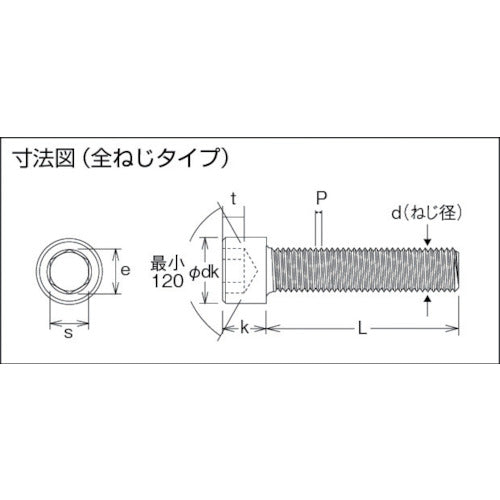

Catalog number: CS-W-0320 Features: ●Trivalent chromate product with low environmental impact. Specifications: ●Dimensions (mm) d: M3 ●Dimensions (mm) L: 20 ●Thread pitch (mm): 0.5 ●Thread length (mm): 20 ●Strength category: 10.9 ●Head diameter (mm): 5.5 ●Head thickness (mm): 3 ●Hexagonal hole diagonal dimension (mm): 2.5 ●Hexagonal hole depth (mm): 1.3 ●Thread diameter (mm): 3 ●Neck length (mm): 20 ●JIS B1176 standard product Material/Finish: ●Chrome molybdenum steel (SCM435) ●Surface treatment: Trivalent chromate finish (white)
