Konoe Hexagonal Socket Head Bolt Trivalent White M5 x 10 (500 pieces) CS-W-0510 1 box

Konoe Hexagonal Socket Head Bolt Trivalent White M5 x 10 (500 pieces) CS-W-0510 1 box

JAN：4997265901585 　
Hardware and building materials Hexagonal Socket Head Bolt Hexagonal socket head bolt (cap screw) Konoe Bolt Screws, bolts and nuts
¥3,868
¥3,868
Sale Sold out
Shipping calculated at checkout.

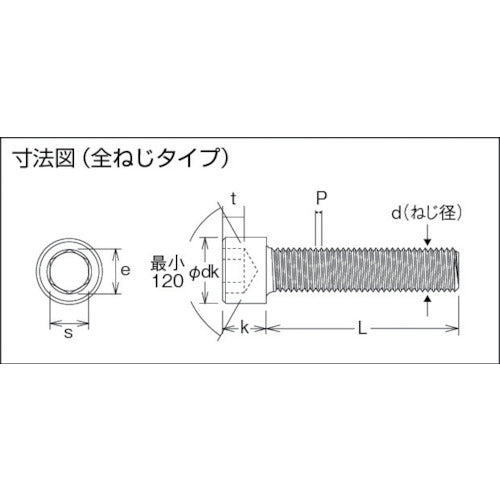

Catalog number: CS-W-0510 Features: ●Trivalent chromate product with low environmental impact. Specifications: ●Dimensions (mm) d: M5 ●Dimensions (mm) L: 10 ●Thread pitch (mm): 0.8 ●Thread length (mm): 10 ●Strength classification: 10.9 ●Head diameter (mm): 8.5 ●Head thickness (mm): 5 ●Hexagonal hole diagonal dimension (mm): 4 ●Hexagonal hole depth (mm): 2.5 ●Neck length (mm): 10 ●Thread diameter (mm): 5 ●JIS B1176 standard product Material/Finish: ●Chrome molybdenum steel (SCM435) ●Surface treatment: Trivalent chromate finish (white)
