Konoe Hexagonal Socket Bolt Full Thread M3 x 10 (500 pieces) CS-0310 1 box

Konoe Hexagonal Socket Bolt Full Thread M3 x 10 (500 pieces) CS-0310 1 box

JAN：4997265901004 　
Hardware and building materials Hexagonal Socket Head Bolt Hexagonal socket head bolt (cap screw) Konoe Bolt Screws, bolts and nuts
¥2,376
¥2,376
Sale Sold out
Shipping calculated at checkout.

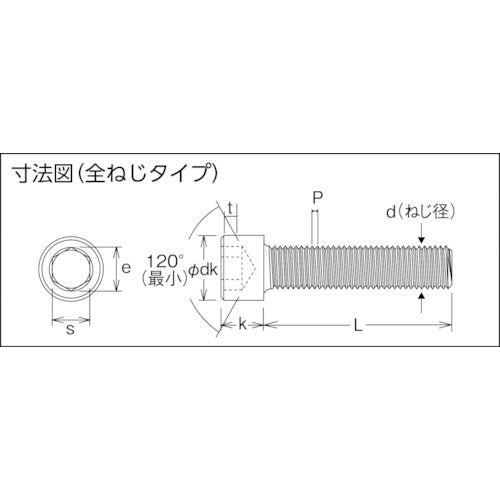

Catalog number: CS-0310 Features: ● Made of SCM material, it has high strength. Specifications: ● Dimensions (mm) d: M3 ● Dimensions (mm) L: 10 ● Thread pitch (mm): 0.5 ● Thread length (mm): 10 ● Strength category: 12.9 ● Surface treatment: Black dyeing (iron tetraoxide coating) ● Thread type: Full thread ● Head diameter (mm): 5.5 ● Head thickness (mm): 3 ● Hexagonal hole diagonal dimension (mm): 2.5 ● Hexagonal hole depth (mm): 1.3 ● Type: Full thread ● Neck length (mm): 10 ● JIS B1176 standard product Material/Finish: ● Chromium molybdenum steel (SCM435) ● Surface treatment: Black dyeing finish (iron tetraoxide coating)
