Konoe Hexagonal Socket Bolt Full Thread M8 x 16 (100 pieces) CS-0816 1 box

Konoe Hexagonal Socket Bolt Full Thread M8 x 16 (100 pieces) CS-0816 1 box

JAN：4997265902520 　
Hardware and building materials Hexagonal Socket Head Bolt Hexagonal socket head bolt (cap screw) Konoe Bolt Screws, bolts and nuts
¥2,033
¥2,033
Sale Sold out
Shipping calculated at checkout.

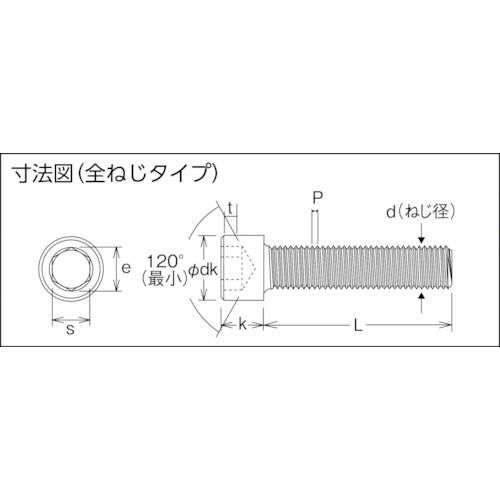

Catalog number: CS-0816 Features: ● Made of SCM material, it has high strength. Specifications: ● Dimensions (mm) d: M8 ● Dimensions (mm) L: 16 ● Thread pitch (mm): 1.25 ● Thread length (mm): 16 ● Strength category: 12.9 ● Surface treatment: Black dyeing (black oxide coating) ● Thread type: Full thread ● Head diameter (mm): 13 ● Hexagonal hole diagonal dimension (mm): 6 ● Hexagonal hole depth (mm): 4 ● Type: Full thread ● Head height (mm): 8 ● Neck length (mm): 16 ● JIS B1176 standard product Material/Finish: ● Chromium molybdenum steel (SCM435) ● Surface treatment: Black dyeing finish (black oxide coating)
View full details
