Konoe Hexagonal Socket Bolt Half Thread M10x10 (30 pieces) CS-10100 1 box

Konoe Hexagonal Socket Bolt Half Thread M10x10 (30 pieces) CS-10100 1 box

JAN：4997265902728 　
Hardware and building materials Hexagonal Socket Head Bolt Hexagonal socket head bolt (cap screw) Konoe Bolt Screws, bolts and nuts
¥3,194
¥3,194
Sale Sold out
Shipping calculated at checkout.

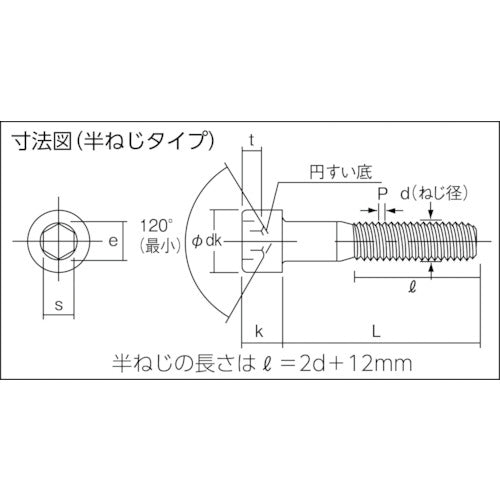

Catalog number: CS-10100 Features: ●The strength of the lower neck part, which bears the load, is stronger than that of the fully threaded type. Specifications: ●Dimensions (mm) d: M10 ●Dimensions (mm) L: 100 ●Thread pitch (mm): 1.5 ●Thread length (mm): 32 ●Strength category: 12.9 ●Head diameter (mm): 16 ●Hexagonal hole diagonal dimension (mm): 8 ●Neck length (mm): 100 ●Head height (mm): 10 ●Hexagonal hole depth (mm): 5 ●Type: Half thread ●JIS B1176 standard product Material/Finish: ●Chrome molybdenum steel (SCM435) ●Surface treatment: Black dye finish (iron oxide coating)
