Konoe Hexagonal Socket Head Bolt Half Thread M10x55 (50pcs) CS-1055 1 Box

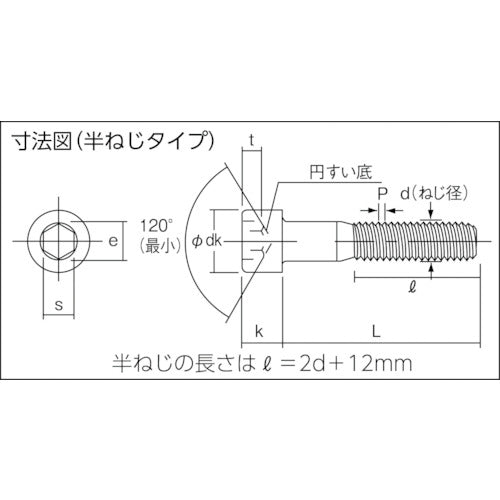

Catalog number: CS-1055 Features: ●The strength of the lower neck part, which bears the load, is stronger than that of the fully threaded type. Specifications: ●Dimensions (mm) d: M10 ●Dimensions (mm) L: 55 ●Thread pitch (mm): 1.5 ●Thread length (mm): 32 ●Strength category: 12.9 ●Head diameter (mm): 16 ●Hexagonal hole diagonal dimension (mm): 8 ●Head height (mm): 10 ●Hexagonal hole depth (mm): 5 ●Type: Half thread ●Neck length (mm): 55 ●JIS B1176 standard product Material/Finish: ●Chrome molybdenum steel (SCM435) ●Surface treatment: Black dye finish (iron oxide coating)
