Konoe Hexagonal Socket Bolt Half Thread M6 x 45 (200 pieces) CS-0645 1 box

Konoe Hexagonal Socket Bolt Half Thread M6 x 45 (200 pieces) CS-0645 1 box

JAN：4997265902476 　
Hardware and building materials Hexagonal Socket Head Bolt Hexagonal socket head bolt (cap screw) Konoe Bolt Screws, bolts and nuts
¥4,105
¥4,105
Sale Sold out
Shipping calculated at checkout.

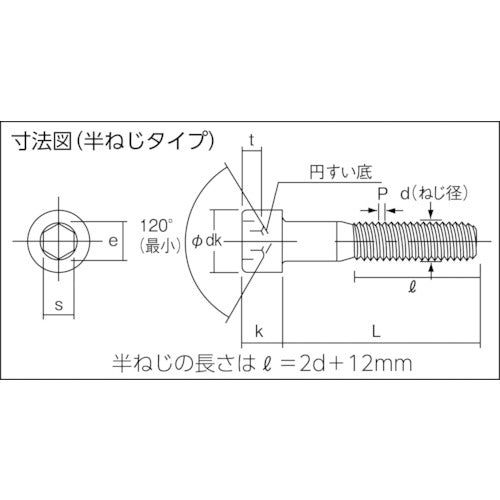

Catalog number: CS-0645 Features: ●The strength of the lower neck part, which bears the load, is stronger than that of the fully threaded type. Specifications: ●Dimensions (mm) d: M6 ●Dimensions (mm) L: 45 ●Thread pitch (mm): 1 ●Thread length (mm): 24 ●Strength category: 12.9 ●Head diameter (mm): 10 ●Hexagonal hole diagonal dimension (mm): 5 ●Type: Half thread ●Neck length (mm): 45 ●Head height (mm): 6 ●Hexagonal hole depth (mm): 3 ●JIS B1176 standard product Material/Finish: ●Chrome molybdenum steel (SCM435) ●Surface treatment: Black dye finish (iron oxide coating)
