Konoe Hexagonal Socket Head Bolt Half Thread M6 x 60 (100 pieces) CS-0660 1 box
Konoe Hexagonal Socket Head Bolt Half Thread M6 x 60 (100 pieces) CS-0660 1 box
Regular price
¥3,115
Regular price
Sale price
¥3,115
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

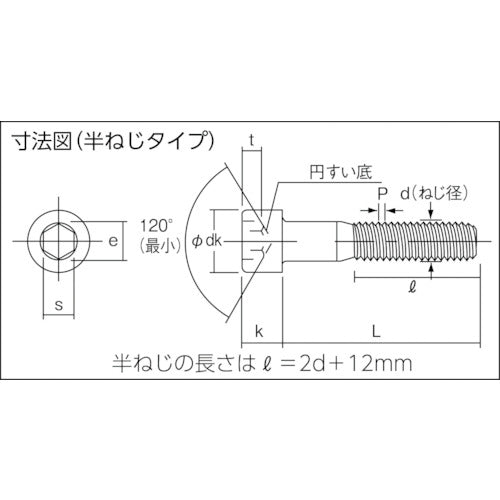

Catalogue number: CS-0660 Features: ●The strength of the lower neck part, which bears the load, is stronger than that of the fully threaded type. Specifications: ●Dimensions (mm) d: M6 ●Dimensions (mm) L: 60 ●Thread pitch (mm): 1 ●Thread length (mm): 24 ●Strength category: 12.9 ●Head diameter (mm): 10 ●Hexagonal hole diagonal dimension (mm): 5 ●Neck length (mm): 60 ●Head height (mm): 6 ●Hexagonal hole depth (mm): 3 ●Type: Half thread ●JIS B1176 standard product Material/Finish: ●Chrome molybdenum steel (SCM435) ●Surface treatment: Black dye finish (iron oxide coating)
