Konoe Hexagonal Socket Head Bolt Half Thread M8 x 70 (50 pieces) CS-0870 1 box

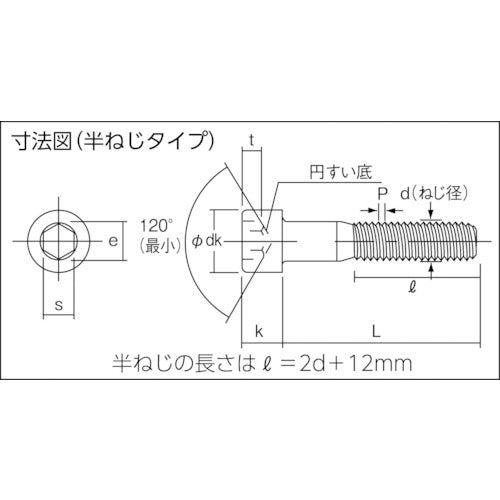

Catalog number: CS-0870 Features: ●The strength of the lower neck part, which bears the load, is stronger than that of the fully threaded type. Specifications: ●Dimensions (mm) d: M8 ●Dimensions (mm) L: 70 ●Thread pitch (mm): 1.25 ●Thread length (mm): 28 ●Strength category: 12.9 ●Head diameter (mm): 13 ●Hexagonal hole diagonal dimension (mm): 6 ●Hexagonal hole depth (mm): 4 ●Head height (mm): 8 ●Neck length (mm): 70 ●Type: Half thread ●JIS B1176 standard product Material/Finish: ●Chrome molybdenum steel (SCM435) ●Surface treatment: Black dye finish (iron oxide coating)
