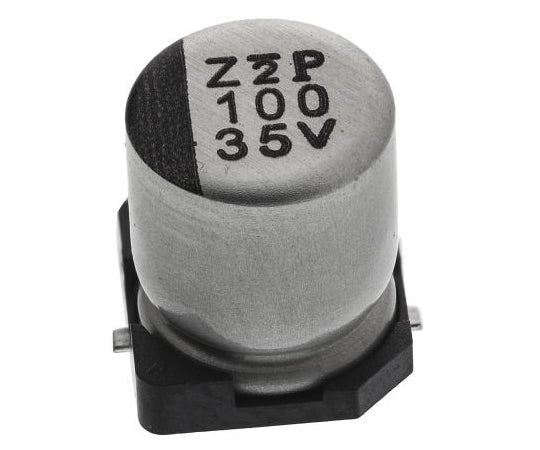

Capacitor 100μF 35V dc 1 bag (10 pieces) UWT1V101MCL1GS 1 bag (10 pieces)

Aluminum electrolytic capacitor WT series 105℃ Chip type that operates over a wide temperature range of 55 to +105°C. Rated voltage range: 4 to 50 V Rated capacitance range: 0.1 to 1500 μF Designed for surface mounting on high-density boards. Ideal for automatic mounting machines that use carrier tape. Compliant with RoHS Directive (2011/65/EU). (As of October 2022) WT series lead-free type capacitance: 100 μF Voltage: 35V dc Mounting type: Surface mount Technology: Electrolysis Dimensions: 6.3 (Dia.) x 7.7mm Height: 7.7mm Operating temperature Min: -55℃ Diameter: 6.3mm Operating temperature Max: +105℃ Lead spacing: 2.2mm Series: WT Code number: 739-2851
