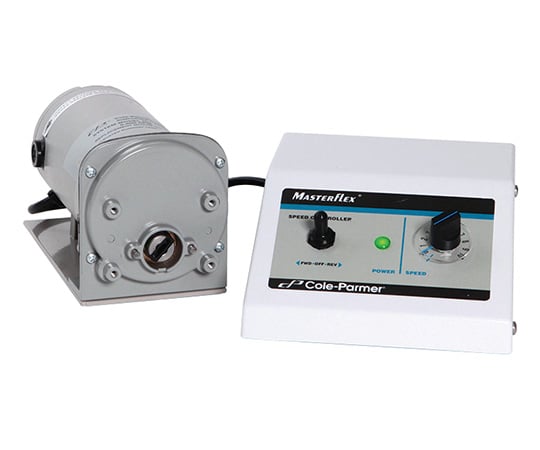

Variable pump with separate controller 07559-00 1 unit

High torque, variable speed pump with separate drive and controller The drive unit and controller are separate. A DC motor is used, providing high torque and stable rotation speed. The changeover switch allows for reverse flow. Tube L/S13 & Head Easy Load, II, III: 0.36-36 Tube L/S14 & Head Easy Load, II, III: 1.3-130 Tube L/S15 (※2) & Head Easy Load, II, III: 10-1000 (11-1100) Tube L/S16 & Head Easy Load, II, III: 4.8-480 Tube L/S17 & Head Easy Load, II, III: 17-1700 Tube L/S18 & Head Easy Load, II, III: 23-2300 Tube L/S24 (※2) & Head Easy Load, II, III: 17-1700 (18-1800) Tube L/S25 (※1) & Head Easy Load, II, III: 10-1000 Tube L/S35 (※2) & Head Easy Load II, III: 23-2300 (26-2600) Tube L/S36 (※2) & Head Easy Load II, III: 29-2900 (34-3400) Flow rate (mL/min): 1.2 to 3400 Rotation speed (50/60Hz): 6-600rpm Rotation speed repeatability: ±2% Motor: DC75W Number of heads that can be attached: Maximum 2 Power capacity: AC100V 2.2A 50/60Hz *1: There is no standard head for L/S25. *2: L/S15, 24, 35, and 36 type tubes cannot be used with multi-channel pump heads. * () indicates the volume of fluid delivered when using a high performance pump head.
