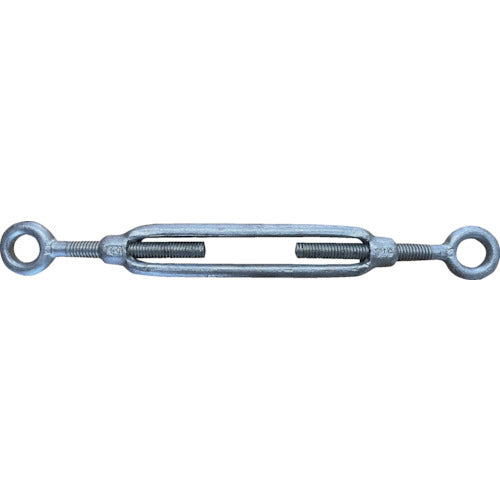

Kondotec Frame-type turnbuckle, both ends, TB-E/E, hot-dip galvanized, W5/8, 011A2DEE16, 1 piece

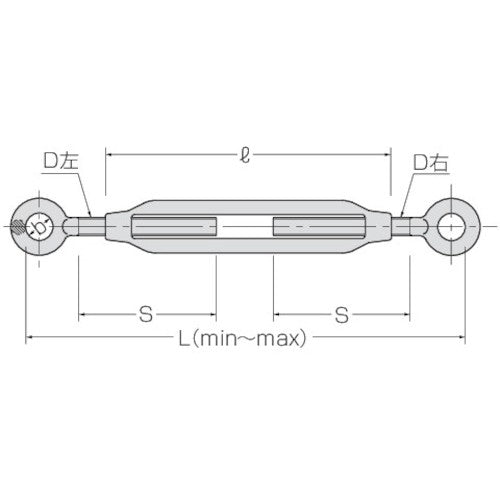

Catalog number: 011A2DEE16 Features: ●Tightening can be done on both sides simultaneously with one turn. Applications: ●For tightening marine cargo, supports, tightening formwork, and fixing signs and antennas. Specifications: ●Working load (kN): 12.7 ●Thread diameter: W5/8 ●Frame length l (mm): 250 ●Thread length S (mm): 120 ●Lmin (mm): 350 ●Lmax (mm): 520 ●Hole diameter b (mm): 24 Material/Finish: ●Steel ●Surface treatment: Hot-dip galvanized Note: ●Length Lmin to Lmax is a guideline and is not guaranteed.
