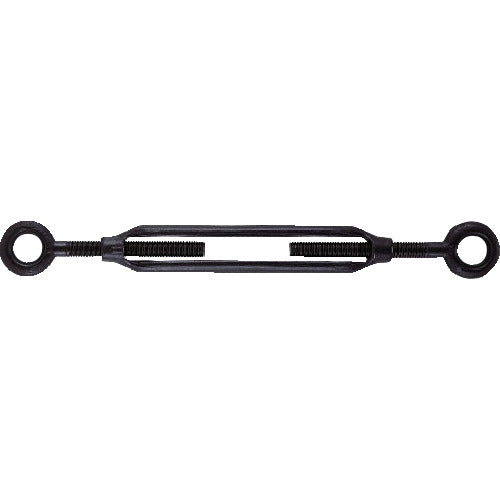

Kondotec Frame-type turnbuckle, double-sided, TB-E/E, plain, W3/4, 011A2AEE19, 1 piece

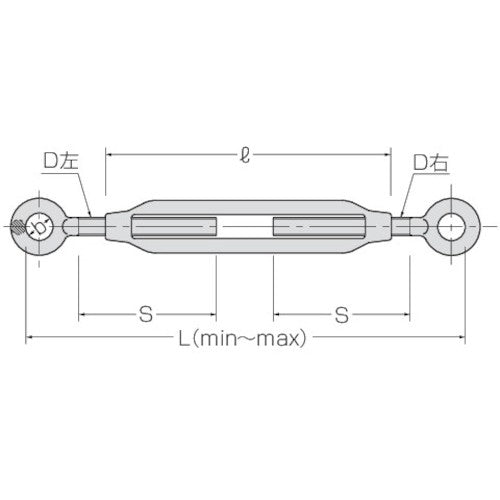

Catalog number: 011A2AEE19 Features: ●Tightening can be done on both sides simultaneously with one turn. Applications: ●For tightening cargo transported by sea, supports, tightening formwork, and fixing signs and antennas. Specifications: ●Working load (kN): 18.6 ●Thread diameter: W3/4 ●Frame length l (mm): 300 ●Thread length S (mm): 140 ●Lmin (mm): 400 ●Lmax (mm): 610 ●Hole diameter b (mm): 28 Material/Finish: ●Steel ●Surface treatment: Fabric Note: ●Length Lmin to Lmax is a guideline and is not guaranteed.
