Kondotec Frame-type turnbuckle, double-sided, TB-E/E, plain, W7/8, 011A2AEE22, 1 piece

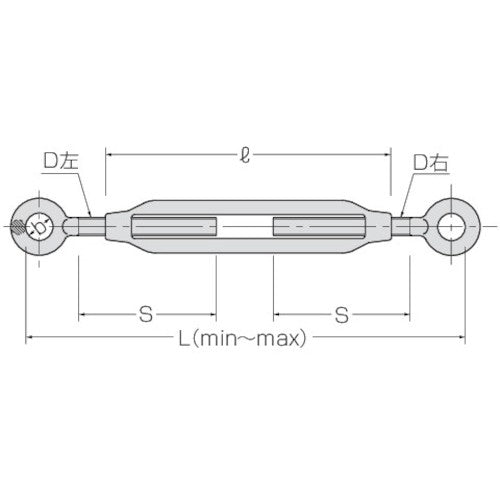

Catalog number: 011A2AEE22 Features: ●Tightening can be done on both sides simultaneously with one turn. Applications: ●For tightening cargo transported by sea, supporting, tightening formwork, and fixing signs and antennas. Specifications: ●Working load (kN): 25.5 ●Thread diameter: W7/8 ●Frame length l (mm): 325 ●Thread length S (mm): 155 ●Lmin (mm): 450 ●Lmax (mm): 670 ●Hole diameter b (mm): 33 Material/Finish: ●Steel ●Surface treatment: Fabric Note: ●Length Lmin to Lmax is a guideline and is not guaranteed.
