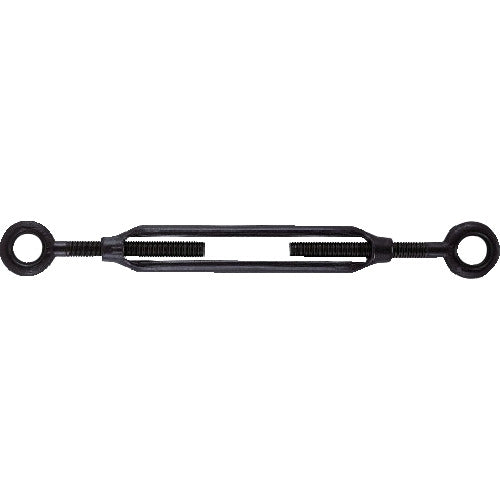

Kondotec LS Frame Turnbuckle Both Open TB-E/E Material W1/2 011A2ALSEE12 1 pc

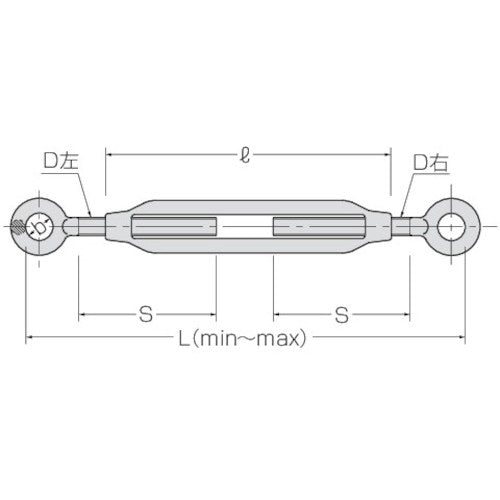

Catalog number: 011A2ALSEE12 Features: ●Tightening can be done on both sides simultaneously with one turn. Applications: ●For tightening cargo transported by sea, supports, tightening formwork, and fixing signs and antennas. Specifications: ●Working load (kN): 7.8 ●Thread diameter: W1/2 ●Frame length l (mm): 200 ●Thread length S (mm): 95 ●Lmin (mm): 270 ●Lmax (mm): 400 ●Hole diameter b (mm): 19 Material/Finish: ●Steel ●Surface treatment: Fabric Note: ●Length Lmin to Lmax is a guideline and is not guaranteed.
