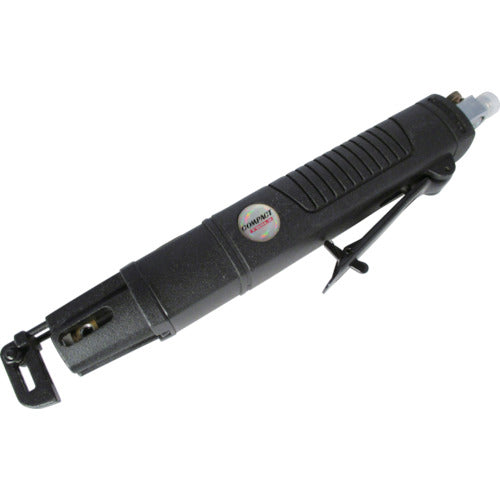

Compact Tool Air Saw 603 603 1 unit

Catalog number: 603 Features: ●Stroke width of 25 mm, greatly contributing to improved work efficiency. ●Even at low speeds, there is little drop in cutting ability, contributing to improved durability of the saw blade. Applications: ●For cutting double-layer steel plate parts of automotive steel panels. ●For cutting plastic parts, aluminum, etc. Specifications: ●Cutting capacity (mm): Iron plate 5.0 ●Stroke length (mm): 25 ●Stroke number (times/min): 5000 ●Air consumption (［［M3］］/min): 0.17 ●Hose mounting port: G1/4 ●Exhaust: Rear ●Total length (mm): 272 ●Stroke length (mm) when long: 25 ●Stroke number (times/min) when long: 5000 ●Depth (mm): 272 ●Height (mm): 75 ●Air pressure used (MPa) combined: 0.6 ●Width (mm): 40 ●Rotation speed (rpm): 5000 ●Stroke (mm): 25 ●Noise level (dB): 85 ●Air pressure used: 0.4 to 0.6 MPa ●Width x height x total length (mm): 40 x 75 x 272 ●Flow rate (［［M3］］/min): 0.17 Material/Finish: ●Body: Aluminum alloy Set contents/Accessories: ●Saw blade: 18T 5 sheets, 24T 5 sheets Caution: ●Please use earplugs, safety glasses, dust mask, and anti-vibration gloves if necessary. ●For other details, please refer to the instruction manual.
