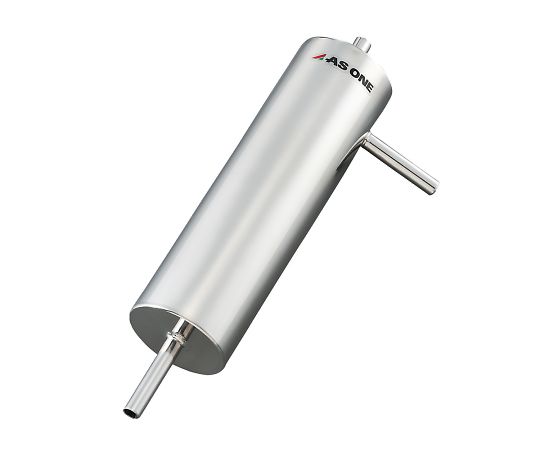

Cold trap (stainless steel) Lower straight H2SO6 1 piece

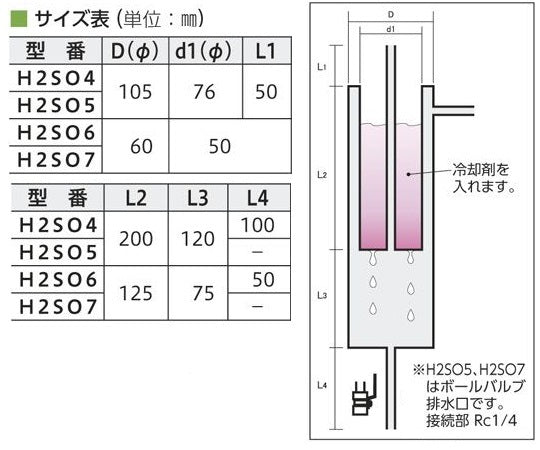

It has a double structure and combines a vapor trap and a cooling section. By attaching a rubber stopper, collection can be done directly into the flask. Combines trap and Dewar vessel Body length (mm): 250 Body diameter (Φmm): 60 Lower part shape: Straight (Φ10mm) Body material: SUS304 Branch outer diameter: Φ10mm size: D(Φ):60mm d1(Φ):50mm L1: 50mm L2: 125mm L3: 75mm L4: 50mm Weight: 1kg
