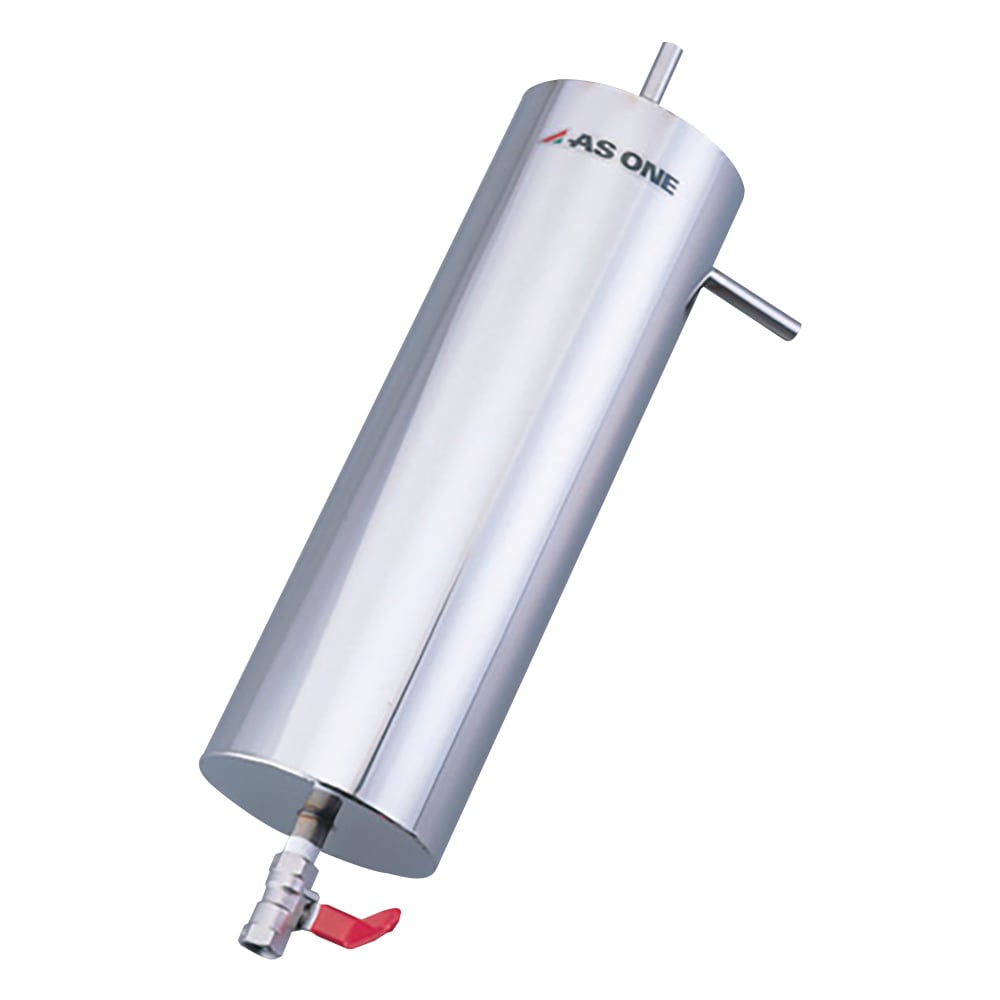

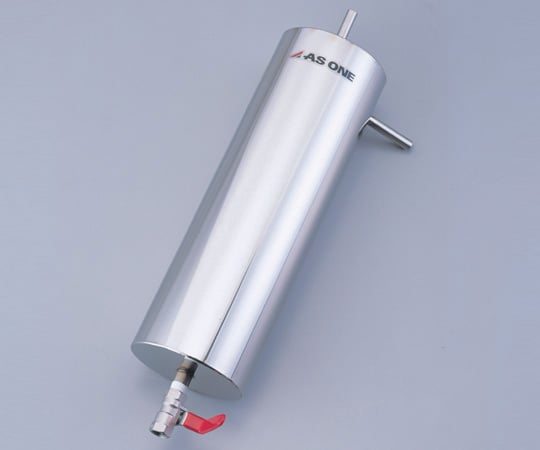

It has a double structure and combines a vapor trap and a cooling section.
Combined trap and dewar vessel Body length (mm): 323
Body diameter (Φmm): 105
Lower shape: Valve (RC1/4)
Body material: Stainless steel (SUS304)
Branch outer diameter (φmm): 10

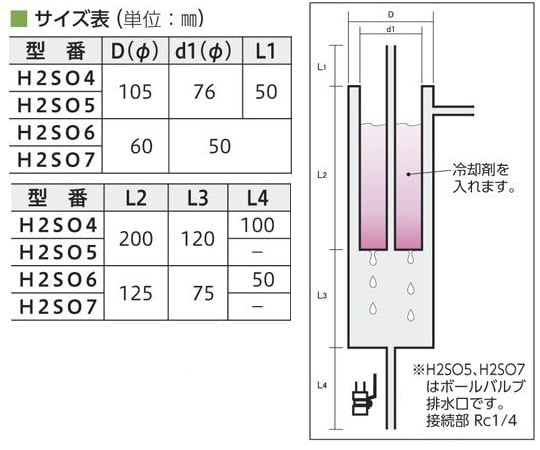

D(Φ):105mm
d1(Φ):76mm
L1: 50mm
L2: 200mm
L3: 120mm
Weight: 2kg
