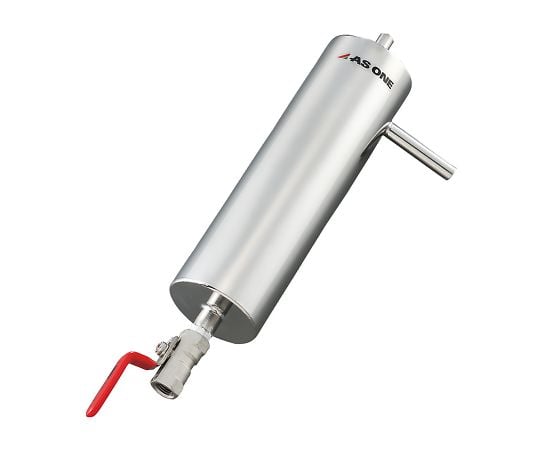

It has a double structure and combines a vapor trap and a cooling section.
Combines trap and Dewar vessel Body length (mm): 250
Body diameter (Φmm): 60
Lower shape: Valve (RC1/4)
Body material: SUS304
Branch outer diameter: Φ10mm

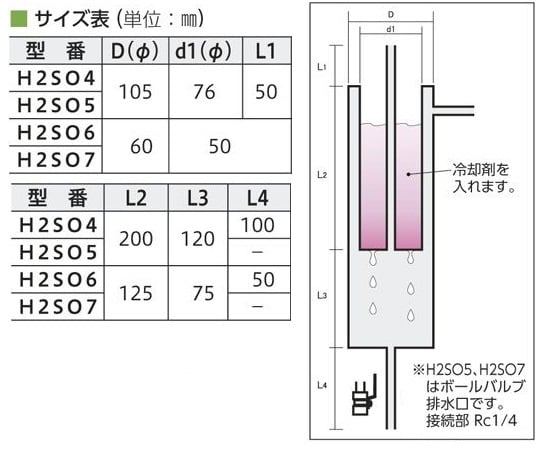

size:
D(Φ):60mm
d1(Φ):50mm
L1: 50mm
L2: 125mm
L3: 75mm
Weight: 1kg
