Sakae Fuji Spark Ace (hand operated, vertical type) Cold weather compatible cylinder BT-20ZA BT-20ZA 1 unit

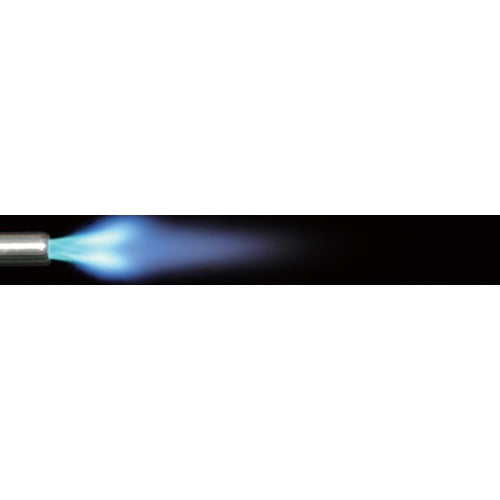

Catalog number: BT-20ZA Features: ●Can be used at any angle of 360°. ●Jet screw high temperature flame that can be used for copper pipe brazing up to 6 minutes. ●Flame shape can be adjusted with air adjustment ring. Applications: ●Copper pipe brazing work up to 6 minutes. Specifications: ● Flame temperature (℃): 1900 ● Heat output (kcal/h): 2900 ● Burn time (min/can): 50 ● Capacity (g): 185 ● Nozzle outer diameter (mm): 16.0 ● Compatible models: R200, HP200 ● Height (mm): 77 ● Length (mm): 201 ● Width (mm): 30 ● Total length (mm): 205 ● Nozzle diameter (mm): Φ16 ● Flame temperature (℃): Approx. 1900 ● Flame length (mm): 100-150 ● Nozzle diameter: φ16.0 ● Piezoelectric ignition ● Flame shape: Jet screw flame ● Dedicated gas cylinder (R-200, HP-200) ● For domestic use only Materials/Finish: ● Burner: Stainless steel (SUS304) ● Valve: Brass Set contents/accessories: ●1 burner ●1 HP200 cartridge ●1 gas cylinder HP-200 (185g) Caution: ●Do not use near flammable or combustible materials ●Use in a well-ventilated area ●Do not store in places above 40°C ●Not covered by overseas product liability insurance.
