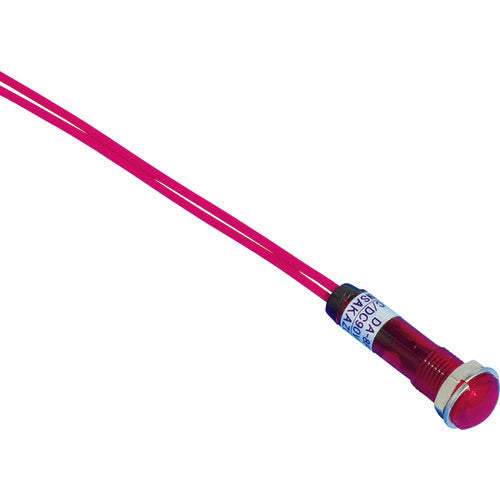

Sakazume LED indicator light DA-8FL (AC/DC 100V connection) Φ8 Red DA-8FL-AC/DC100V-R 1 piece

Catalog number: DA-8FL-AC/DC100V-R Features: ●High brightness LED indicator lamp with built-in resistor. ●Can be directly connected to AC/DC100V power supply. ●Comes with 200mm long lead wire. Applications: ●Power indication, warning indication, etc. Specifications: ●Lens color: Red ●Light color: Red ●Rated voltage (V): AC/DC100 (90-132) ●Rated current (mA): 1.0-2.5 ●Built-in LED lamp: Chip LED ●Panel cut: φ8.2 ●Wiring method: Lead wire (200mm) ●Molded frame ●Insulation withstand voltage: AC2000V 1 minute (between live part and earth) ●Insulation resistance: DC500V 100MΩ or more (between live part and earth) Material/Finish: ●Body/Flange/Lens: Polycarbonate resin
