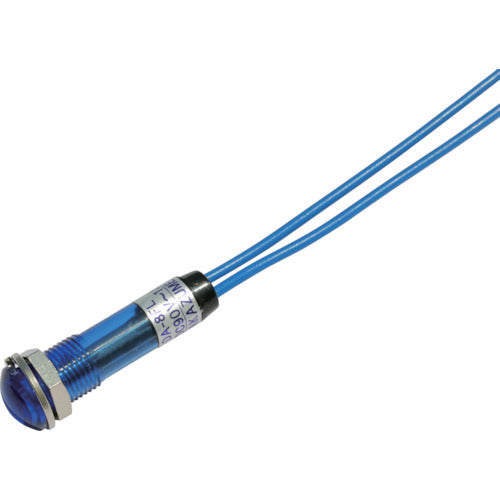

Sakazume LED indicator light DA-8FL (AC/DC 100V connection) Φ8 Blue DA-8FL-AC/DC100V-B 1 piece

Sakazume LED indicator light DA-8FL (AC/DC 100V connection) Φ8 Blue DA-8FL-AC/DC100V-B 1 piece

JAN： 　
Electrical and Electronic Components Electronics LED indicator light Rotating lights/indicator lights Sakazume Indicator Light
¥1,500
¥1,500
Sale Sold out
Shipping calculated at checkout.
Catalog number: DA-8FL-AC/DC100V-B Features: ●High brightness LED indicator with built-in resistor. ●Can be directly connected to AC/DC100V power supply. ●Panel cut: φ8.2 ●Light color: Blue ●Lens color: Blue ●Comes with 200mm long lead wire (UL1430 AWG24). Applications: ●Power supply indicator ●Power supply ON/OFF indicator Specifications: ●Rated voltage (V): AC/DC100 (90-132) ●Rated current (mA): 1.0-2.5 ●Wiring method: Lead wire (L=200mm UL1430 AWG24) ●Molded frame ●Insulation withstand voltage: AC2000V 1 minute (between live part and earth) ●Insulation resistance: DC500V 100MΩ or more (between live part and earth) Material/Finish: ●Body/Flange/Lens: Polycarbonate resin
