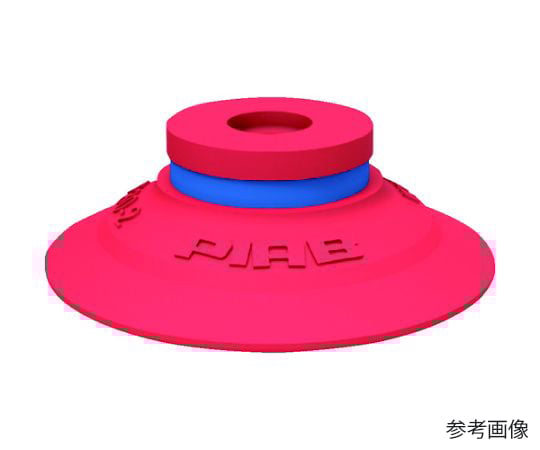

Suction cup (01 01 134) F30-2.20 1 piece

Suitable for flat workpieces. There is little vertical change, allowing for stable lifting. Recommended when lifting a workpiece vertically to the ground. The cleats prevent deformation of thin and easily deformed workpieces and increase the friction when lifting the workpiece vertically to the ground. Pad outer diameter (mm): 32 Diameter (mm): 32 - Height (mm): 10.4 Screws: None, rubber parts only Lifting force (N): 25 @60-kPa *When the suction surface is parallel to the ground Operating temperature range (℃): -40 to 200 Rubber parts only Operating temperature range: -40 to 200°C Material/Finish: Silicone Country of Origin: Singapore Code number: 160-7562
