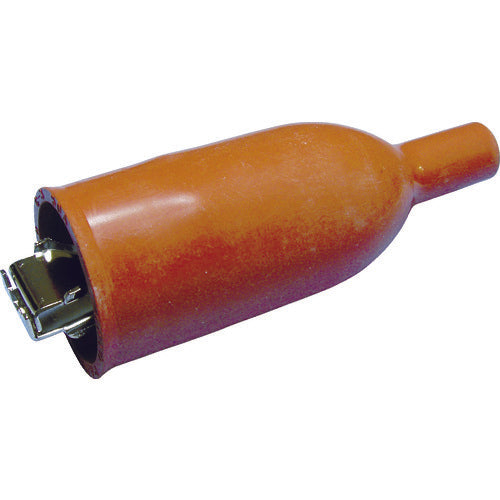

Sato Parts Clip C-3 Series 50A Clip and Cap Set Red C-3-50-R 1 pc

Catalog number: C-3-50-R Features: ● Attach to the end of a cable to create a lead wire. Applications: ● Testing temporary wiring, models, teaching materials, etc. ● Checking electrical continuity, etc. Specifications: ● Color: Red ● Rating (A): 50 ● Total length (mm): 122 ● Body diameter (mm): 45 ● Hole size (mm): 12 ● Maximum opening size (mm): 30.0 ● Insulation resistance: DC1000V, 1000MΩ or more ● Withstand voltage (V): AC3000 (1 minute) ● Cap diameter (mm): 45.0 ● Rated current (A): 50 ● Clip total length (mm): 105.0 ● Wire insertion hole (mm): 12.0 ● Cover hole size (mm): 12 ● Cover diameter (mm): 45 ● Cover total length (mm): 122 Material/Finish: ● Red cap: Ethylene propylene rubber ● Black cap: Natural rubber ● Clip body: Brass
