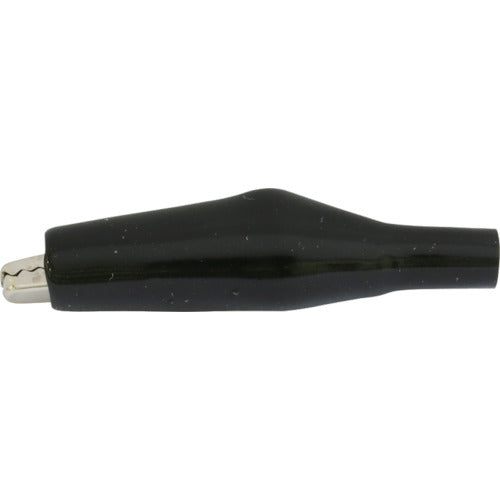

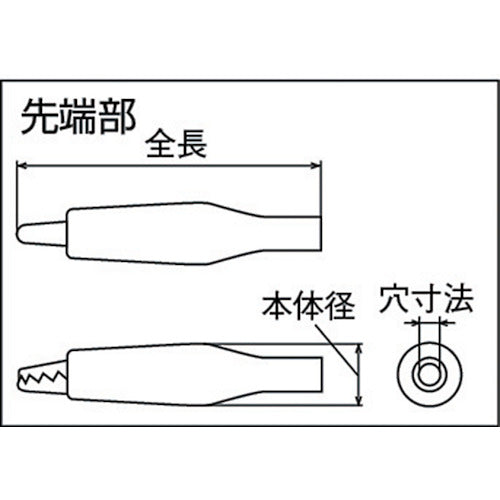

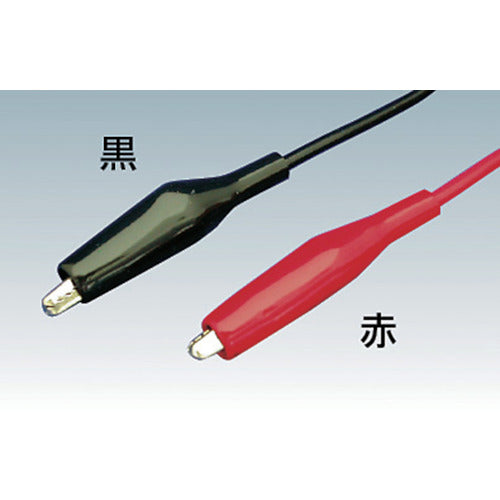

Catalog number: C-4-MB Features: ● Attach to the end of a cable to create a lead wire. Applications: ● Testing temporary wiring, models, teaching materials, etc. ● Checking electrical continuity, etc. Specifications: ● Color: Black ● Rating (A): 5 ● Total length (mm): 48 ● Body diameter (mm): 11 ● Hole dimensions (mm): 3.5 ● Insulation resistance: Insulation resistance: DC500V, 100MΩ or more ● Withstand voltage (V): AC500 (1 minute) ● Rated voltage (V): 30 ● Rated current (A): 5 Materials/Finish: ● Cover: Polyvinyl chloride (PVC) ● Clip body: Brass
