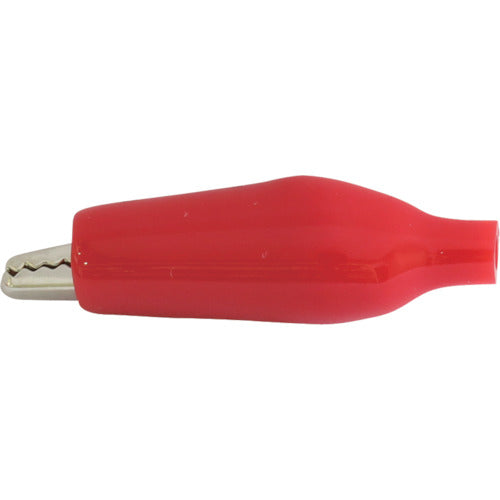

Sato Parts Clip C-4 Series S Size Total Length 34mm Red 5 Pieces C-4-SR 1 PK

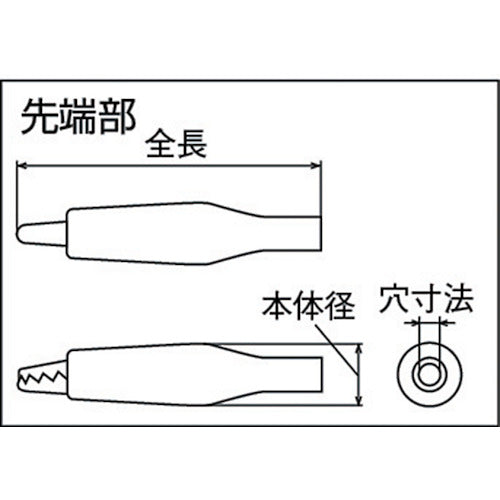

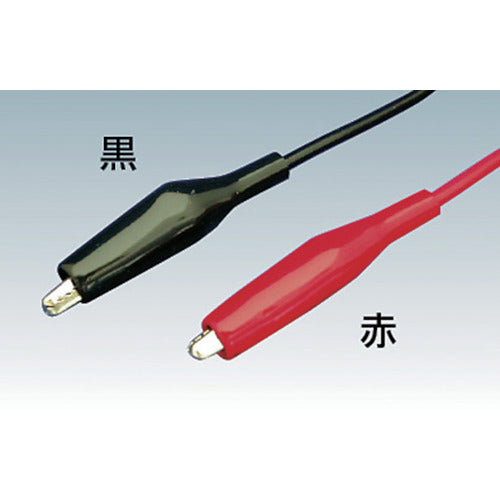

Catalog number: C-4-SR Features: ● Attach to the end of a cable to create a lead wire. Applications: ● Testing temporary wiring, models, teaching materials, etc. ● Checking electrical continuity, etc. Specifications: ● Color: Red ● Rating (A): 3 ● Total length (mm): 34 ● Body diameter (mm): 10 ● Hole dimensions (mm): 2.5 ● Insulation resistance: Insulation resistance: DC500V, 100MΩ or more ● Withstand voltage (V): AC500 (1 minute) ● Rated voltage (V): 30 ● Rated current (A): 3 ● Withstand voltage: AC500V (1 minute) Material/Finish: ● Cover: Polyvinyl chloride (PVC) ● Clip body: Brass
