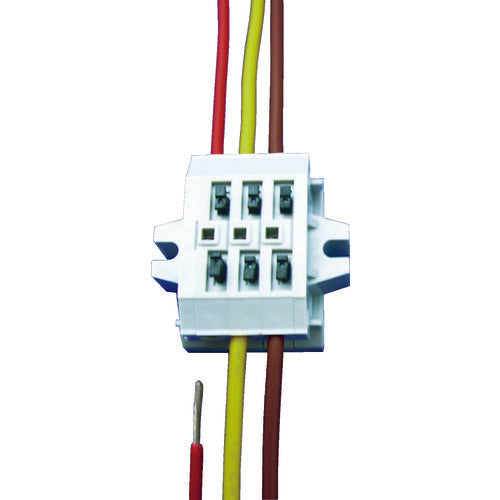

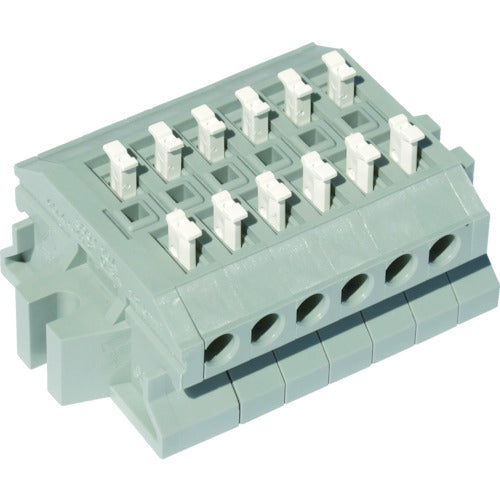

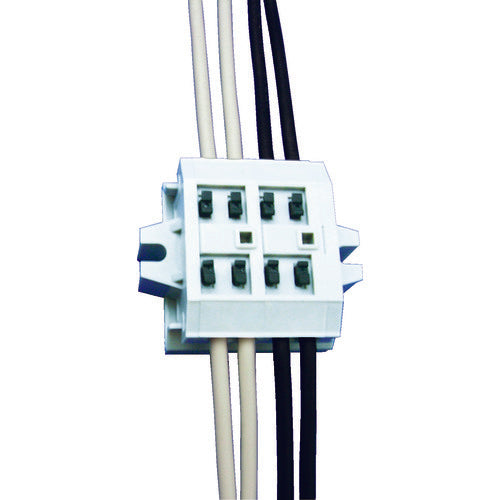

Catalog number: ML-1700-A-6P Features: ●Relay terminal block compatible with solid wire and stranded wire. ●Improves wiring work efficiency and eliminates wiring variations due to the worker. ●Stable wiring connection with one touch. ●Direct wiring can be done by simply peeling off the insulation without soldering. (Striped wire length 10mm) Applications: ●As a relay terminal block for various sensors, signals, and power supplies. Specifications: ●Color: Gray ●Number of poles: 6 ●Length (mm): 30 ●Width (mm): 47.5 ●Height (mm): 18.6 ●Type: Spring-type relay ●Rating: 300V-10A Withstand voltage: AC2000V (1 minute) ●Insulation resistance: DC500V, 100MΩ or more ●1-pole, 2-wire type Material/Finish: ●Body: Nylon 66 ●Button: Modified polyphenylene ether
