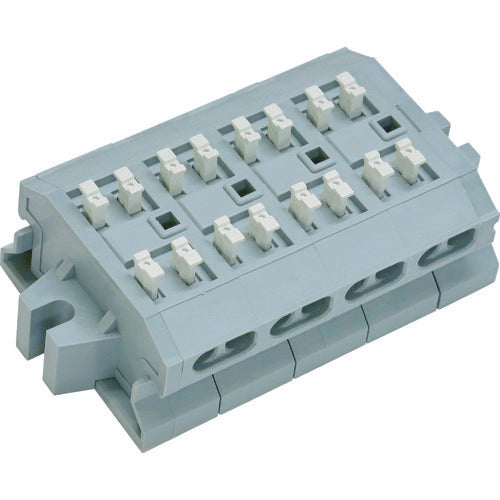

Catalog number: ML-1700-B-4P Features: ● Terminal block for relaying solid wires and stranded wires. ● Improves wiring efficiency and eliminates variations in wiring due to the worker. ● Stable wiring connection with one touch. ● Direct wiring can be performed by simply peeling off the insulation without soldering. (Striped wire length 10mm) Applications: ● As a relay terminal block for various sensors, signals, and power supplies. Specifications: ● Color: Gray ● Number of poles: 4 ● Length (mm): 30 ● Width (mm): 57.5 ● Height (mm): 18.6 ● Type: Spring-type relay ● Rating: 300V-10A Withstand voltage: AC2000V (1 minute) ● Insulation resistance: DC500V, 100MΩ or more Material/Finish: ● Body: Nylon 66 ● Button: Modified polyphenylene ether
