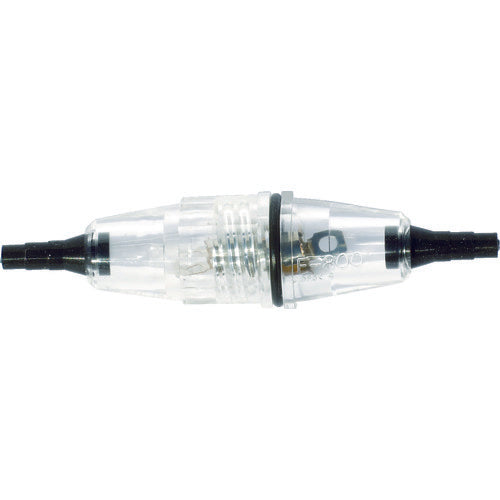

SATO PARTS Waterproof (IP66) Fuse Holder for Relay φ5.2X20 F-800 1 pc

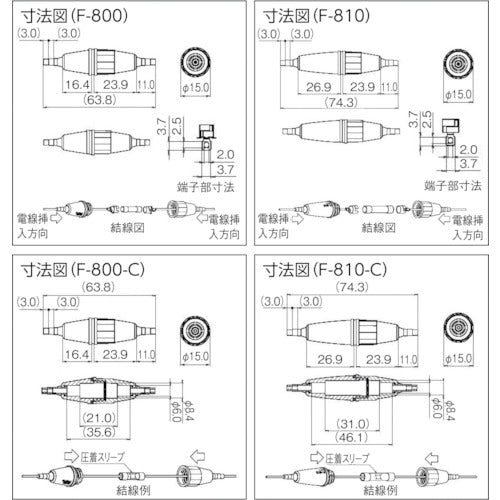

Catalog number: F-800 Features: ● Intermediate type fuse holder. ● Dustproof and waterproof (IP66). ● Suitable fuse tube is O5.2 x 20 mm. Applications: ● Fuse holder for locations where waterproofing is required. Specifications: ● Total length (mm): 63.8 ● Compatible fuse: φ5.2 × 20 ● Withstand voltage (V): AC2000 (1 minute) ● Protection class: IP66 ● Rating: 250V-7A (50V MAX. outside the equipment where it can be easily touched) ● Insulation resistance: DC500V, 100MΩ or more ● Withstand voltage: AC2000V (1 minute) ● Protection class: IP66 ● Terminal fittings: Soldering terminal ● Body color: C (transparent) ● Connecting wire: 0.75mm [[squared]] or less, finished outer diameter 1.5mm - 2.8mm (cut the grommet to match the outer diameter of the wire before use) Material/Finish: ● Body: Polycarbonate (Flame retardant grade UL94V-2) ● Grommet, O-ring: Silicone rubber
