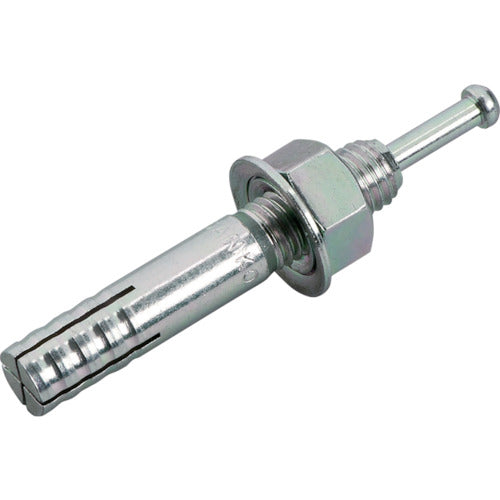

Sanko All Anchor C Type Steel Thread Size M10 Total Length 80mm C-1080 50 Pieces

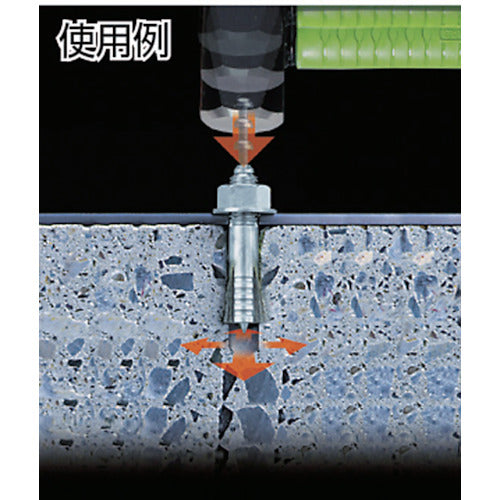

Catalog number: C-1080 Features: ● Installation is as simple as driving in the core rod, so you can tell at a glance when installation is complete. ● The body and threaded part have the same diameter, so you can drill a small hole in the concrete. ● Can be installed directly from above the object to be attached. ● Nut tightening type, so it can be removed. Applications: ● For construction work, civil engineering work, electrical work, mechanical equipment work, etc. Specifications: ● Screw size: M10 ● Total length (mm): 80 ● Screw length (mm): 25 ● Maximum thickness of object to be attached (mm): 26 ● Pilot hole diameter (mm): 10.5 ● Maximum tensile load (kN): 10.2 ● Embedded depth (mm): 40 ● Boxed Material/Finish: ● Steel ● Surface treatment: Trivalent chromate treatment Note: ● Maximum tensile load is the value when the concrete strength Fc = 21N/[[MM2]].
