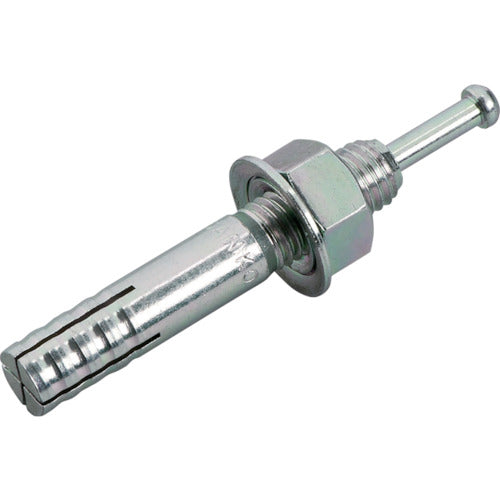

Sanko All Anchor C Type Steel Thread Size M12 Total Length 120mm C-1212 30 Pieces

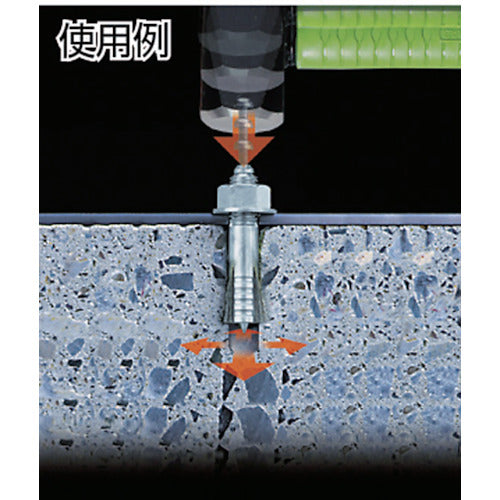

Catalog number: C-1212 Features: ● Installation is as simple as driving in the core rod, so you can tell at a glance when installation is complete. ● The body and threaded part have the same diameter, so you can drill a small hole in the concrete. ● Can be installed directly from above the object to be attached. ● Nut tightening type, so it can be removed. Applications: ● For construction work, civil engineering work, electrical work, mechanical equipment work, etc. Specifications: ● Screw size: M12 ● Total length (mm): 120 ● Screw length (mm): 50 ● Maximum thickness of object to be attached (mm): 56 ● Pilot hole diameter (mm): 12.7 ● Maximum tensile load (kN): 17.1 ● Embedded depth (mm): 50 ● Boxed Material/Finish: ● Steel ● Surface treatment: Trivalent chromate treatment Note: ● Maximum tensile load is the value when the concrete strength Fc = 21N/[[MM2]].
