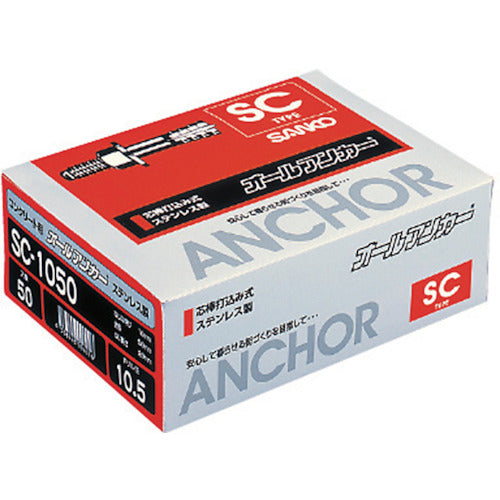

Sanko All Anchor SC Stainless Steel Thread Size M10 Total Length 100mm SC-1010 50 Pieces

Catalog number: SC-1010 Features: ● Installation is as simple as driving in the core rod, so you can tell when installation is complete at a glance. ● The body and threaded part have the same diameter, so you can drill a small hole in the concrete. ● Can be installed directly from above the object to be attached. ● Nut tightening type, so it can be removed. Applications: ● Construction work, civil engineering work, electrical work, mechanical equipment work, etc. ● For construction and equipment work where rust prevention is desired. Specifications: ● Screw designation: M10 ● Total length (mm): 100 ● Screw length (mm): 30 ● Maximum thickness of object to be attached (mm): 46 ● Pilot hole diameter (mm): 10.5 ● Maximum tensile load (kN): 10.2 ● Embedded depth (mm): 40 ● Boxed Material/Finish: ● Stainless steel (SUS304 series) Note: ● Maximum tensile load is the value when the concrete strength Fc = 21N/[[MM2]].
