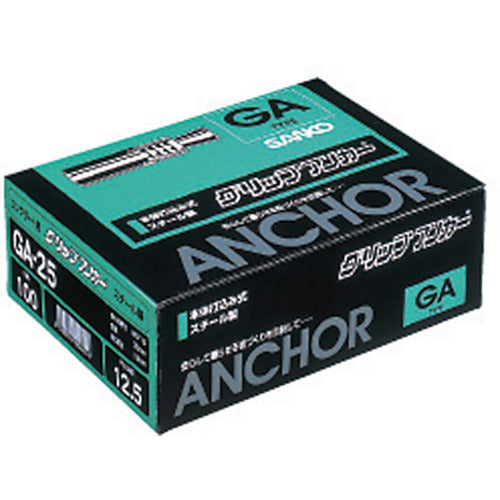

Sanko Grip Anchor Steel GA-10M 100 Pieces

Catalog number: GA-10M Features: ●The installation surface is flat, so the anchor will not get in the way even after the equipment (facilities) are removed. ●By selecting the bolt according to the specifications, the range of uses can be expanded. ●The installation surface is flat, so the anchor will not get in the way even after the equipment (facilities) are removed. Applications: ●Light ceiling construction, temporary scaffolding installation, concrete formwork construction, wiring and piping hanging hardware installation, etc. Specifications: ●Screw size: M10 ●Outer diameter (mm): 14.0 ●Total length (mm): 40 ●Screw length (mm): 15 ●Drill diameter (mm): 14.5 ●Maximum tensile load (kN): 14.9 ●Boxed Material/Finish: ●Steel ●Trivalent chromate treatment ●Surface treatment: Trivalent chromate treatment Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ●A dedicated hand holder is required for construction.
