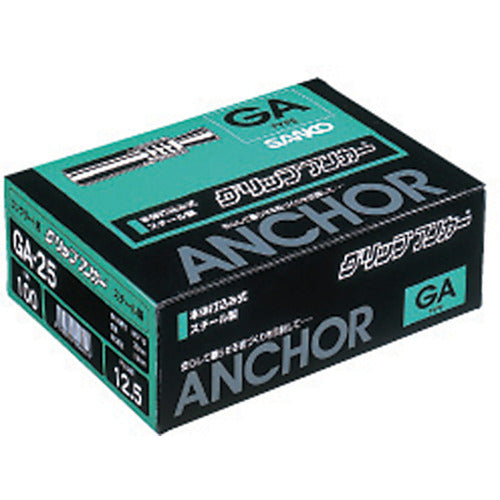

Sanko Grip Anchor Steel GA-16M 25 Pieces

Catalog number: GA-16M Features: ●The installation surface is flat, so the anchor does not get in the way even after the equipment (facilities) are removed. ●By selecting the bolt according to the specifications, the range of uses can be expanded. ●The installation surface is flat, so the anchor does not get in the way even after the equipment (facilities) are removed. Applications: ●Light ceiling construction, temporary scaffolding installation, concrete formwork construction, wiring and piping hanging hardware installation, etc. Specifications: ●Screw size: M16 ●Outer diameter (mm): 21.5 ●Total length (mm): 60 ●Screw length (mm): 25 ●Drill diameter (mm): 22.0 ●Maximum tensile load (kN): 33.3 ●Boxed Material/Finish: ●Steel ●Trivalent chromate treatment ●Surface treatment: Trivalent chromate treatment Note: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ●A dedicated hand holder is required for construction.
