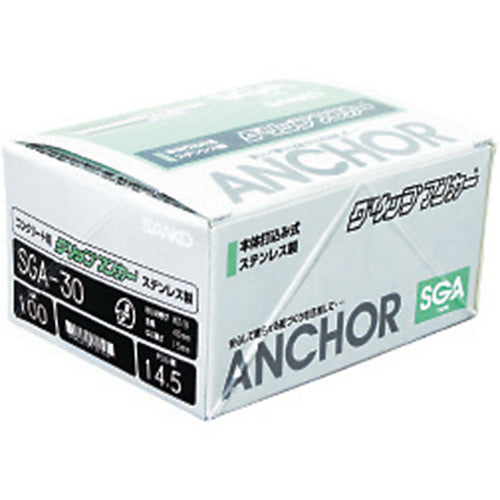

Sanko Grip Anchor Stainless Steel SGA-12M 50 Pieces

Catalog number: SGA-12M Features: ●The construction surface is flat, so the anchor does not get in the way even after the equipment (facilities) is removed. ●The range of uses can be expanded by selecting the bolt according to the specifications. Applications: ●For light ceiling construction where rust prevention is desired, temporary scaffolding installation, concrete formwork construction, wiring and piping hanging hardware installation, etc. Specifications: ●Screw size: M12 ●Outer diameter (mm): 17.3 ●Total length (mm): 50 ●Screw length (mm): 20 ●Drill diameter (mm): 18.0 ●Maximum tensile load (kN): 25.5 ●Boxed Material/Finish: ●Stainless steel (SUS304 series, SUSXM7) Caution: ●The maximum tensile load is the value when the concrete strength Fc=21N/[[MM2]]. ●A dedicated holder is required for construction. ●Be sure to remove the cutting chips from the pilot hole. ●Check that the main body has a cone and set it in the pilot hole.
