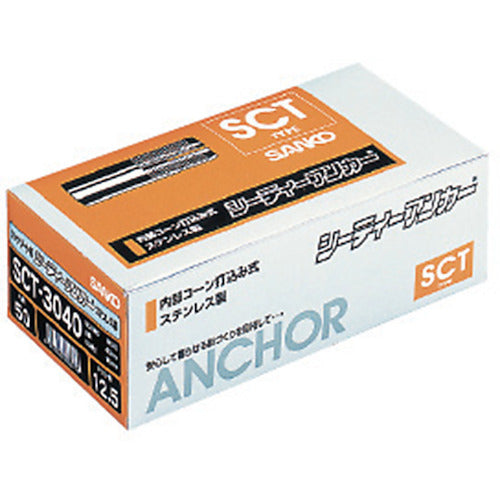

Sanko CT Anchor Stainless Steel SCT-3040 50 Pieces

Catalog number: SCT-3040 Features: ●Even application on concrete surfaces for a beautiful appearance. ●The use of a special hand holder allows for confirmation of completion of application. ●Main dimensions based on JCAA certified and SHASE-S standard products. ●Internal cone driving type for less variation in application. ●Even application on concrete surfaces for a beautiful appearance. Applications: ●For concrete ●Installation of pipe hanging hardware, light ceiling construction, air conditioning duct installation, cable rack hanging, scaffolding installation, etc. Specifications: ●Screw size: W3/8 ●Outer diameter (mm): 12.0 ●Total length (mm): 40 ●Screw length (mm): 16 ●Drill diameter (mm): 12.5 ●Maximum tensile load (kN): 14.7 ●Boxed Material/Finish: ●Stainless steel (SUS304 series) Note: ●Maximum tensile load is the value when concrete strength Fc=21N/[[MM2]]. ●A special hand holder is required for installation.
